| Sweeping System | |
| Cleaning path | |
| Single side brush | 50 in |
| Dual side brush | 62 in |
| Brush Drive System | |
| Main brush | |
| Main brush length (tubular) | 36 in |
| Main brush lift | Mechanical lever |
| Main brush drive | Belt |
| Side brush diameter (disk) | 23 in |
| Debris hopper | |
| Volume capacity (polyethylene) | 11 ft3 |
| Weight capacity | 650 lbs |
| Dump height (variable to) | 60 in |
| Dump reach | 14 in |
| Power System | |
| Engine-gasoline/LPG | 23 hp |
| Propelling System | |
| Propel speed forward (variable to) | 5.0 mph |
| Propel speed reverse (variable to) | 3.0 mph |
| Gradeability | |
| Full hopper | 8.0 deg |
| Empty hopper | 10.0 deg |
| Dust Control System | |
| Filter system (triple stage) | |
| Stage 1 | Perma-filter |
| Stage 2 | Cyclonic pre-filter |
| Stage 3 (canister filled) | 80 ft 2 |
| Filtration level (up to) | 0.5 microns @ 99% efficiency |
| Vacuum fan | 1.0 hp |
| Vacuum fan speed | 6,100 rpm |
| Vacuum diameter | 9 in |
| Machine Specifications | |
| Length | 82.3 in |
| Width | 48.5 in |
| Height | |
| With overhead guard | 82.1 in |
| Without overhead guard | 48.5 in |
| Weight (net) without battery | 2,300 lbs |
| Weight (net) with standard battery | 2,975 lbs |
| Minimum aisle turn | 95 in |
Technical specs may include optional equipment that is not included with all units.
Demo Tennant S20 Gas Powered Rider Sweeper with Cab
Our Take (from the SES Sales Team)
“This S20 is set up for operators who sweep in heat, cold, dust or weather: it comes with a soft cab. Under the cab it is the same S20 built for foundries, manufacturing plants, warehouses, parking structures and outdoor yards. It sweeps a 50 in path with one side brush, or 62 in with dual side brushes, and the 11 cu ft hopper dumps at heights up to 60 in, straight into a dumpster. The gasoline engine, governed at 24.8 hp, means no charging downtime and the power for outdoor work and ramps. Dust control is the S20's strong suit. The three-stage SweepMax system pairs a Perma-Filter and a cyclonic pre-filter with a nanofiber canister filter rated to 0.5 microns at 99% efficiency, and the ShakeMax 360 shaker cleans the filter from the inside out. As a demo, it gives you a proven industrial rider with light use behind it, so ask us about the hours and condition on this unit. If you sweep only indoors with limited ventilation, a battery sweeper may be the better fit.”

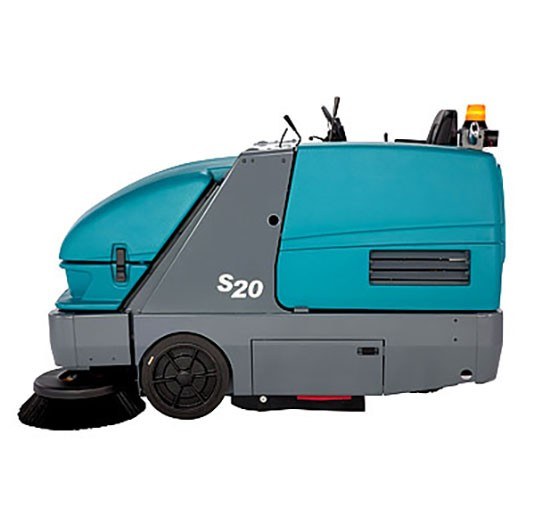

A compact industrial rider sweeper with mid-size performance
The Tennant S20 is a ride-on sweeper for manufacturing plants, foundries, warehouses, parking structures, airports and outdoor work areas. A 36 in main brush and a 23 in side brush sweep a 50 in path in one pass, the 11 cu ft hopper empties at heights up to 60 in, and Tennant estimates coverage of up to 163,680 sq ft per hour.
This unit has the gasoline engine, governed at 24.8 hp, with variable travel speed up to 8 mph, and it comes with a soft cab to shelter the operator. The three-stage SweepMax dust control system and ShakeMax 360 filter shaker keep dust in the hopper instead of in the air.
Condition: Demo. Light use and priced below new. Ask us about the hours and condition.
What you get
Heavy-duty sweeping with a soft cab
SweepMax and ShakeMax 360: dust stays in the hopper
Features
Built for tough environments

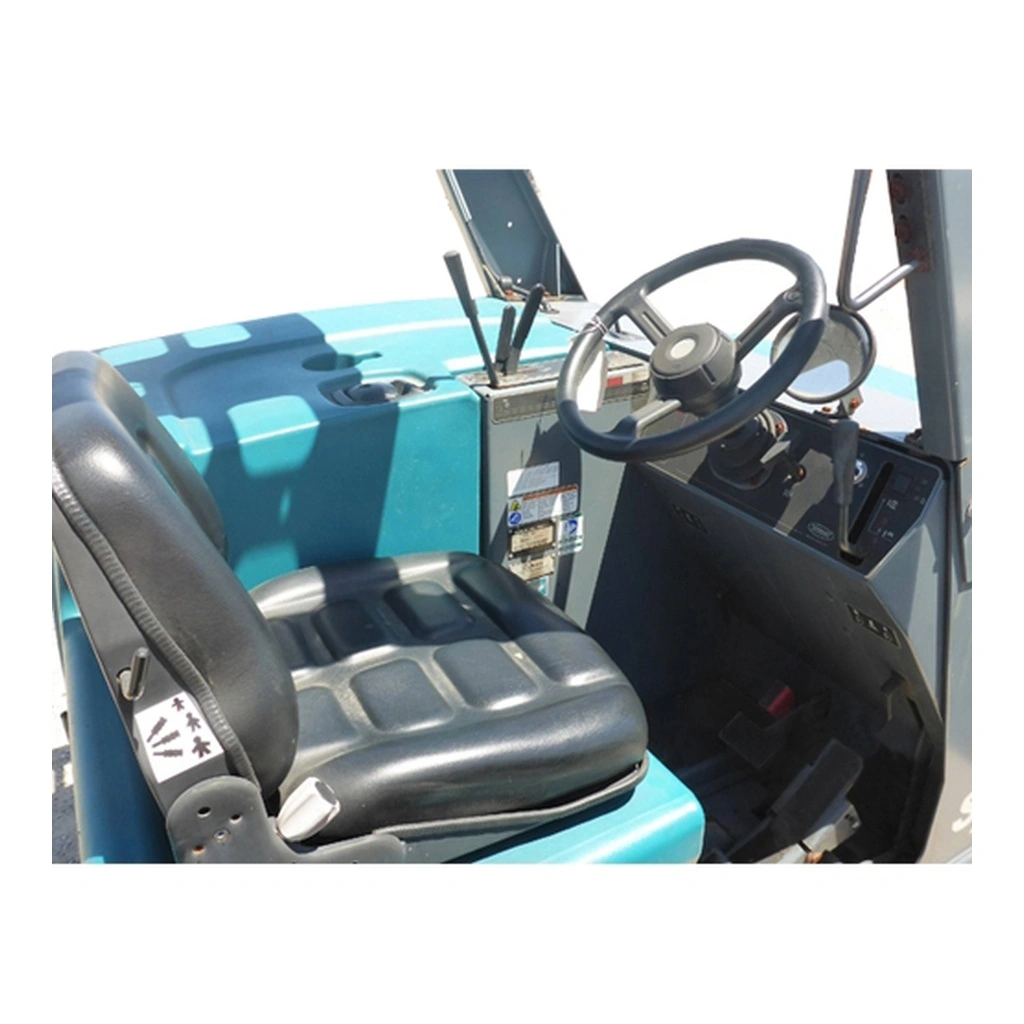

- ✓All-levers-forward operator controls make the S20 simple to learn and run
- ✓Thermo-Sentry alerts the operator and shuts down airflow if it senses heat in the hopper
- ✓Seat occupancy switch shuts the engine off within seconds of the operator leaving the seat

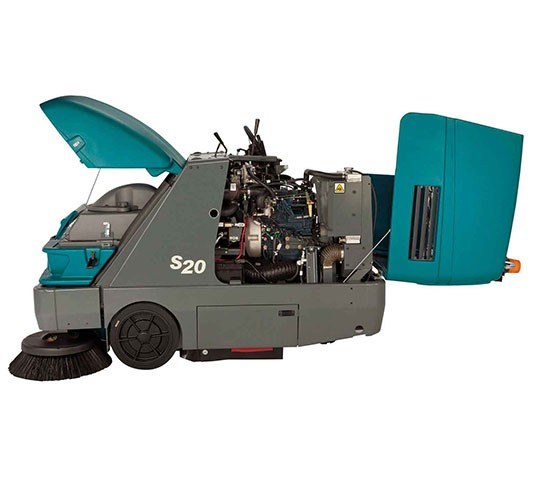

- ✓No-tool, easy-open covers give quick access to the engine and common service points
- ✓Corrosion-proof Duramer hopper and shrouds on a steel T-beam superstructure with a wrap-around steel bumper
Choosing a power source
Gasoline, LPG, diesel or battery
| Gasoline (this unit) | LPG | Diesel | Battery | |
|---|---|---|---|---|
| Governed power | 24.8 hp | 24.5 hp | 18.5 hp | Electric |
| Forward speed, up to | 8.0 mph | 8.0 mph | 8.0 mph | 5.0 mph |
| Gradeability, full hopper | 10 degrees | 10 degrees | 10 degrees | 7 degrees |
Engine models suit outdoor work and long shifts with no charging. The battery S20 is quieter and fume-free for indoor-only buildings.
Specifications
Tennant S20 at a glance
| Models | S20 Compact Ride-On Sweeper, gasoline, with soft cab |
|---|---|
| Sweeping path | 50 in (1,270 mm) single side brush; 62 in (1,575 mm) dual side brush |
| Main brush | 36 in (910 mm) tubular, belt drive, mechanical lever lift |
| Side brush | 23 in (580 mm) |
| Estimated coverage | Up to 163,680 sq ft per hour |
| Hopper volume | 11 cu ft (310 L) polyethylene; 11.25 cu ft (319 L) steel |
| Hopper weight capacity | 750 lb (340 kg) polyethylene; 700 lb (318 kg) steel |
| Dump height / reach | Variable to 60 in (1,525 mm) / 14 in (355 mm) |
| Engine, gasoline | 32.5 hp (24.2 kW) gross at 3,600 rpm; 24.8 hp (18.5 kW) governed at 2,500 rpm |
| Travel speed | Up to 8 mph forward (12.9 km/h), 3 mph reverse (4.8 km/h) |
| Gradeability | 10 degrees (17.6%) full hopper; 14 degrees (25%) empty |
| Dust control | 3-stage SweepMax: Perma-Filter, cyclonic pre-filter, 80 sq ft (7.4 m²) canister filter |
| Dust filtration | 0.5 microns at 99% efficiency (seasoned filter) |
| Length x width | 82.3 x 48.5 in (2,090 x 1,230 mm) |
| Height | 49.5 in (1,260 mm); 82.1 in (2,085 mm) with overhead guard |
| Minimum aisle turn | 95 in (2,415 mm) |
| Weight, net | 2,450 lb (1,110 kg) |
| Sound level | As low as 81 dBA |
| Model Numbers | Tennant S20 compact ride-on sweeper, gasoline engine, with soft cab |
Technical specs may include optional equipment that is not included with all units.
Demo unit details
Questions
Tennant S20: common questions
Does this S20 come with a cab?
Yes. This demo unit includes a soft cab to help shelter the operator from weather and dust. Ask us for the overall height with the cab installed before you plan doorways and parking.
Can the S20 dump into a dumpster?

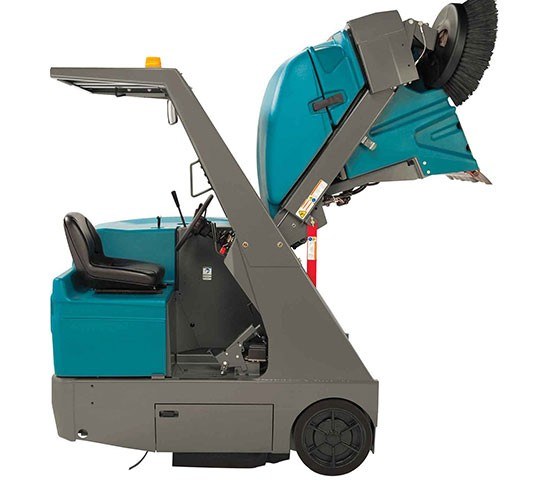

Yes. The hopper is a high-dump design that empties at variable heights up to 60 in, with 14 in of dump reach.
Can it be used indoors and outdoors?
Yes. Tennant lists the S20 for indoor and outdoor use. For indoor-only areas with limited ventilation, Tennant also builds a battery version of the S20.
Will it fit my aisles?
The S20 is 82.3 in long and 48.5 in wide and needs a 95 in aisle to turn around. Tennant lists the height at 82.1 in with the overhead guard. The cab adds to that, so measure your tightest aisle and doorway first.
Not sure the S20 fits your site?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
